When choosing a dimmer for LED lighting, it's important to select the right type that is compatible with your specific LED bulbs. There are various dimming techniques, each with their own applications and characteristics.
| Dimming Technique | Description | Application |
|---|---|---|
| Leading Edge (TRIAC, Leading Edge) | These dimmers cut off the beginning of the alternating current sine wave. They are suitable for traditional incandescent bulbs and many dimmable halogen and some dimmable LED bulbs. Often recognized by the 'RC' marking on LED dimmers, or 'R, L' for traditional installations. | Used for resistive and inductive loads, but often also for dimmable LED bulbs. Ideal for situations where a wide dimming range is desired. |
| Trailing Edge (TRIAC, Trailing Edge) | These dimmers cut off the end of the sine wave. They are generally better suited for LED lighting because they are less likely to cause flickering or buzzing. These are often designated as 'RC' or 'R, C' on LED dimmers. | Widely applicable for dimmable LED bulbs and electronic transformers. This is the most common dimming technique for modern LED lighting in homes and offices. |
| 1-10V Dimmers | This is an analog dimming technique where a low voltage (1 to 10 volts) controls the brightness of the lamp. This method is common in professional and larger installations. | Frequently used in commercial buildings and larger projects where precise control and scalability are important, such as offices, shops, and hospitality venues. |

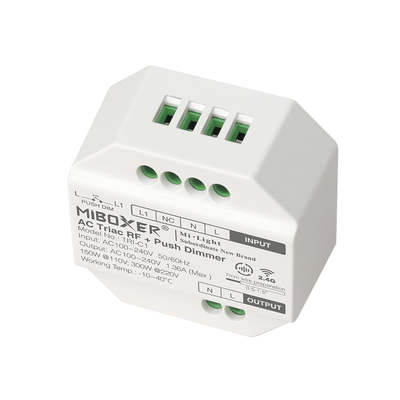

| Push Dimmers (with dim module) | These dimmers work with a push-switch. A short press switches on/off, while a longer press dims the lighting. The dim module itself is often placed behind the switch in the mounting box. | A practical solution for those who want to keep a modern switch or when a traditional rotary dimmer does not offer the desired functionality. |
Dimmers are available in different physical forms, depending on installation requirements:
LED bulbs often operate at low voltage and require a LED driver (power adapter) to convert mains electricity to a suitable voltage. Some LED bulbs have an integrated driver, others require an external driver. For dimmable LED lighting, it is actually the driver that is being dimmed, not the LED chip itself. Therefore, it is important that the dimmer is compatible with the driver of the LED bulb. In the case of 1-10V dimmers, the dimmer sends a control current to the driver to adjust brightness.
Common issues with LED dimmers include flickering lights, buzzing sounds, or a limited dimming range. These problems often arise due to incompatibility between the dimmer and the LED bulb (or its integrated driver). It is crucial to choose a dimmer that is specifically designed for LED lighting and has a sufficiently wide dimming range, including adjustable minimum and maximum dim levels. Always refer to the compatibility lists from both the LED bulb and dimmer manufacturers.
Smart dimmers offer advanced control options and integration with smart home systems. They are often wireless and can be controlled via a smartphone app, voice assistants (such as Google Home or Amazon Alexa), or remote controls. These dimmers use various wireless protocols, including:
In addition to dimming, smart dimmers offer functions such as setting schedules, scenes, and adjusting light color for compatible bulbs. They enable automation, for example, turning on lighting automatically at sunset or dimming the lights when you leave a room.

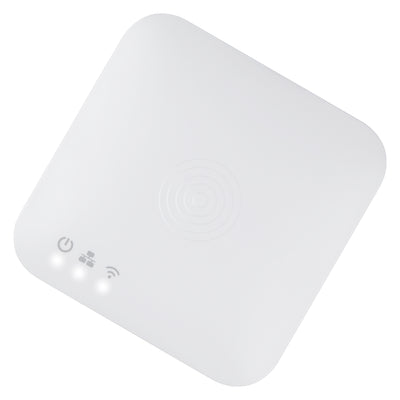

When choosing a smart dimmer, make sure it is compatible with your existing smart home system, or that you are prepared to purchase a new hub. Also check the maximum wattage load the dimmer can handle to avoid overloading and damage. Some smart dimmers also offer adjustable minimum and maximum dim levels through the app, which helps prevent flickering in low wattage LED bulbs.
When selecting and installing LED dimmers, common questions often arise. Here are some frequently asked topics that may help:
Flickering LED bulbs when dimmed usually indicate an incompatibility between the LED bulb and the dimmer. This may be caused by a too low minimum load for the dimmer, using the wrong dimming technology (leading edge versus trailing edge), or quality differences between components. Check if the dimmer is specifically suited for LEDs and whether the total wattage of your bulbs falls within the recommended range of the dimmer. Adjusting the minimum dim level on the dimmer may sometimes resolve the issue.
A buzzing sound is mostly caused by electromagnetic interference, especially in older dimmers or when the dimmer's minimum load is not reached. Make sure the dimmer uses the correct dimming technique (trailing edge is generally quieter for LEDs) and that the total load of the connected bulbs is above the dimmer's minimum load. An LED compensator may sometimes help resolve this issue by increasing the load on the circuit.
In most cases, a regular dimmer designed for incandescent or halogen bulbs will not work properly with LED bulbs. Traditional dimmers are often leading edge and not matched with the low wattages and specific electronics of LEDs, which can lead to flickering, failure to dim, or even damage to the bulbs or the dimmer. Always use a dimmer explicitly suitable for LED lighting.
The choice of dimmer depends on several factors: the type of LED bulb (dimmable or non-dimmable), the dimming technology of the bulb (TRIAC, 1-10V, DALI), the desired installation type (built-in or surface-mounted), and any smart home integration needs. Always check the product information for your LED bulbs for recommended dimmers or compatibility lists. Quality LED bulb manufacturers often publish compatibility lists with tested dimmers.
