Spotlights
Spotlights deliver focused and powerful light over large areas, both indoors and outdoors. They are an effective solution for illuminating facades, driveways, gardens, work sites, and security zones. Modern spotlights predominantly use LED technology, ensuring high light output with low energy consumption. The wide range offers specific solutions for every situation, from atmospheric garden lighting to robust construction lights.
Overview of spotlights and their applications
To choose the right spotlight, it's important to keep the intended use in mind. There are various types available, each with unique features and areas of application.
Spotlights without sensor for continuous lighting
These spotlights provide uninterrupted light and are ideal for locations that require prolonged, constant illumination. Think about lighting buildings, parking lots, billboards, or sports fields. They offer maximum control over the light, unaffected by movement. Switching can be done manually, via a timer, or with a separate dusk sensor.
Spotlights with motion sensor for automatic activation
Spotlights with a built-in motion sensor (PIR sensor) switch on automatically when movement is detected. This is a useful feature for security around homes, garages, or business premises, and also adds convenience when entering dark spaces. Most sensors are adjustable for detection range (typically 4 to 10 meters, sometimes up to 20 meters), the duration the light stays on (often 5 seconds to 30 minutes), and light sensitivity (at dusk or total darkness). This helps to save energy, as the light only operates when needed.
Work lights: Robust lighting for demanding environments
Work lights, often called construction lights, are specifically designed for use on construction sites, in workshops, and for industrial projects. They are characterized by their sturdy housings (usually aluminum with tempered glass) and high shock resistance (IK rating). Many work lights are portable and can be mounted on tripods, making them flexible for temporary lighting during installation or maintenance tasks. Some models feature a built-in battery, allowing for cordless operation.

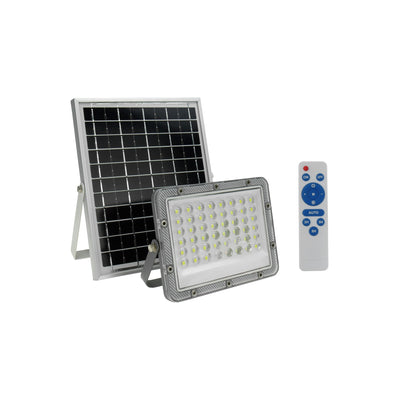

Solar spotlights: Lighting powered by solar energy
For locations without direct power supply, or where energy saving is a priority, solar spotlights are a great solution. These lights charge during the day via an integrated or separate solar panel and automatically provide illumination in the evening. They combine functionality with wireless convenience and environmental friendliness. Their effectiveness depends on sunlight hours; in winter months, the lighting duration may be shorter. Solar spotlights often include a dusk and/or motion sensor.
Important technical aspects when choosing a spotlight
A thoughtful choice of spotlight requires understanding the relevant technical specifications. These determine the performance and suitability for specific applications.
Protection against external factors: IP and IK ratings
The durability of a spotlight in outdoor environments is largely defined by its IP (Ingress Protection) rating and IK rating.
| IP rating | Protection | Example of use |
|---|---|---|
| IP44 | Water splash resistant | Under a canopy, carport |
| IP54/IP55 | Dust and water splash resistant | Most outdoor conditions |
| IP65 | Dust and water jet resistant | Open facades, unprotected outdoor spaces |
| IP67/IP68 | Dust and submersible | Ground spots, pond lights (temporarily/permanently underwater) |
The IK rating indicates impact resistance, showing how well the spotlight can withstand mechanical shocks. For work lights and public lighting, a high IK rating such as IK08 or IK10 is recommended.
The brightness and color of the light
- Lumen (light output): This figure indicates the amount of light the spotlight produces. The higher the number of lumens, the brighter the illumination. A higher lumen rating is often desirable for functional lighting of large areas.
-
Light color (Kelvin): The color temperature, expressed in Kelvin (K), affects the mood and function.
- 2700K - 3000K (warm white): Creates a cozy atmosphere, suitable for gardens or entrances.
- 4000K (neutral white): Provides bright, natural light, often used for workspaces or pathways.
- 5000K - 6500K (cool white / daylight): A very bright, functional light color, suitable for construction sites, sports fields, or security purposes where maximum visibility is needed.
- Beam angle: This is the angle at which light is spread. A wide beam angle (for example 100-120°) is suitable for general lighting of large areas, while a narrower angle (less than 60°) is perfect for accent lighting or illuminating specific objects.
- Color Rendering Index (CRI): This value (0-100) indicates how faithfully colors appear under the light of the lamp. For situations where color recognition is important, such as in workplaces or shops, a CRI of 80 or higher is recommended.
Practical tips for installation and positioning
Proper installation of spotlights is crucial for both light output and for safety and longevity. Pay attention to the following points:
- Location and mounting height: Place spotlights at a height where they can optimally cover the area to be illuminated without causing glare. For sensor spotlights, consider the ideal height for correct motion detection.
- Waterproof connection: Always ensure a waterproof electrical connection, especially for outdoor lighting. Use appropriate waterproof cable connectors and sealing materials.
- Sensor orientation (for sensor models): Aim the motion sensor so that it only responds to movement within the desired detection area. Avoid pointing it at places where unnecessary activation could occur, such as passing traffic or moving branches.
- Cable length and type: Check the supplied cable length and ensure you have the correct type of outdoor cable if extension is needed. For work lights, a sturdy, flexible cable is an advantage.
- Shadow management for solar spotlights: For solar models, it’s important that the solar panel receives adequate direct sunlight throughout the day for optimal charging. Position the panel in a spot free from shadows, leaves, or dirt.
- Maintenance: Regularly clean the glass and, for solar lights, the solar panel to maintain optimal light output and charging efficiency.
A properly installed spotlight contributes to both the safety and functionality of a space, whether it’s a commercial premises or a backyard.
Find the right spotlight for your project
The range of spotlights is extensive, offering a suitable solution for every need. Whether you’re looking to secure a large outdoor area, need a work light for projects in dark conditions, or an energy-efficient option for a remote spot in the garden, there is a fitting spotlight. The ongoing development of LED technology is delivering increasingly efficient and versatile lamps, expanding the options for both professional users and private individuals.
