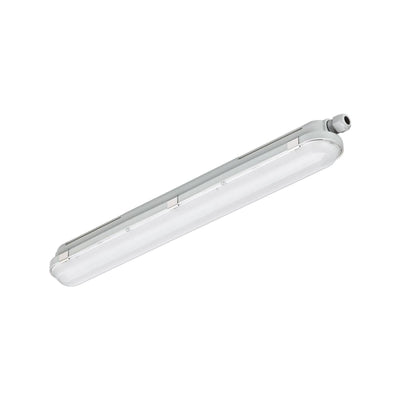

Philips LED waterproof fixture, 25W, 4000 lumen, 4000K cool white, 60cm - 2x18W equivalent
79,95
Mounting Batten 60cm
A mounting batten—also known as LED batten or LED tube fixture—is the housing for your LED tube lighting. The 60 cm variant is popular due to its compact size, making it ideal for spaces where long light lines are not required. This length offers a targeted and efficient lighting solution for various small- to medium-sized areas, and is designed for seamless integration with 60 cm LED tubes for a sleek finish and optimal light distribution.
1 product
Why a 60 cm LED Tube Mounting Batten is a Smart Choice
Switching to or choosing a 60 cm LED tube mounting batten offers tangible advantages, especially when it comes to ease of use and efficiency for specific applications.
- Space-saving design: The 60 cm length makes these battens especially suitable for compact spaces where traditional, longer tube fixtures would not fit or are unnecessary.
- Energy-efficient performance: Used with 60 cm LED tubes, you benefit from significantly lower energy consumption compared to old fluorescent tubes. This results in immediate savings on your energy bill, without sacrificing light output.
- Long lifespan: LED technology in these battens guarantees a long lifespan for the light source, reducing the need for frequent maintenance or replacement.
- Instant, flicker-free lighting: When switched on, this lighting provides full brightness immediately, with no warm-up time or annoying flicker.
Typical Locations for 60 cm LED Mounting Battens
Thanks to their convenient size and efficient light output, 60 cm LED mounting battens are highly versatile. They offer targeted lighting for specific areas:
- Under kitchen cabinets: For bright, even work lighting on countertops.
- Laundry rooms and utility rooms: As functional general lighting with good distribution.
- Small garages and storage rooms: Sufficient illumination for overview and activities.
- Workbenches and hobby areas: Precise lighting for detailed tasks.
- Niches and built-in closets: Optimizes visibility in enclosed spaces.
Installation and Connection of a 60 cm LED Mounting Batten
Installing a 60 cm LED mounting batten is generally straightforward and can often be done without professional assistance. Most modern LED battens are designed for direct connection to the mains, eliminating the need for ballasts and starters.
Steps for Safe Installation:
- Switch off the power: Always start by switching off the electricity in the fuse box for safe working. Verify this with a voltage tester.
- Position the mounting brackets: Most 60 cm mounting battens come with mounting brackets. Attach these to the desired spot on the ceiling or wall. Ensure a stable surface.
- Connect the wiring: Feed the power cable through the designated opening in the battens. Connect the live wire (brown), neutral wire (blue), and earth wire (yellow/green) correctly to the terminal block inside the fixture. Make sure the connection is secure and safe. Some fixtures allow through-wiring, making it easy to link multiple fixtures together.
- Insert the LED tube (if separate): If you have a batten into which the LED tube must be inserted separately, do this after wiring. Ensure the contacts are well-connected and twist the tube a quarter turn to secure it.
- Mount the batten: Click or slide the batten into the previously installed mounting brackets. Check that the fixture is firmly attached.
- Switch the power on and test: Turn the power back on and check if the lighting operates correctly.
Daisy-chaining 60 cm Mounting Battens
When you want to create an extended line of light with multiple 60 cm mounting battens, you can use through-wiring. This allows the fixtures to be linked together so you can operate them from a single power point and switch. This is especially handy in elongated spaces, such as hallways, workshops, or hobby rooms. When purchasing, be sure to choose models specifically labeled as "linkable" or "daisy-chainable."
Frequently Asked Questions about 60 cm LED Tube Mounting Battens
What wattage does a 60 cm LED tube mounting batten replace?
A 60 cm LED tube mounting batten, whether integrated or used with a 60 cm LED tube, typically replaces a traditional 18 Watt fluorescent tube. LED versions, however, consume much less power (often 8W to 10W) for comparable—if not better—light output.
Are all 60 cm LED mounting battens waterproof?
No, not all 60 cm LED mounting battens are waterproof. The degree of protection against dust and water is indicated by the IP rating. For indoor areas with no direct contact with moisture, an IP20 rating suffices. For damp spaces such as bathrooms or covered outdoor areas, choose an IP44 or higher. For outdoor or very wet environments, IP65 or IP67 is necessary. Always pay close attention to this specification when purchasing to ensure proper protection for your application.
Can I use a 60 cm LED tube in an old fluorescent fixture?
Yes, this is often possible with so-called 'retrofit' LED tubes. However, your old fixture must be suitable for this or may need modification by removing or bypassing the ballast and starter. For the 60 cm length, there are LED tubes available that work with a magnetic ballast (often with a provided 'dummy' starter), or that can be connected directly to 230V after wiring has been modified. The safest and most energy-efficient option is a completely new LED mounting batten.
What is the best light color for a 60 cm mounting batten?
The "best" light color depends on both the application and personal preference. For a cozy atmosphere, choose warm white (around 3000K). For neutral and functional lighting, such as in a kitchen or workshop, neutral white (around 4000K) is a good option. For maximum brightness and focus, for example in garages or warehouses, daylight white (around 6000K-6500K) is suitable. Many 60 cm LED mounting battens are available in multiple light colors.
