Choose the Right Power Supply: The Power Adapter for Your LED Strips

An LED power adapter, also known as a driver or transformer, converts mains voltage (230V AC) to the lower direct current (DC) voltage required for LED strips, usually 12V or 24V. Selecting the correct power adapter is important for the lifetime and stability of your LED strips. An adapter that doesn’t meet the requirements can cause flickering, reduced light output, or even premature failure of the LED strip.

To choose the right power adapter, several factors are important:

• Voltage: This must match the voltage of your LED strip (for example, 12V or 24V).
• Wattage: Calculate the total required wattage of your LED strip(s) by multiplying the length by the wattage per meter. Add a safety margin of at least 20% to prevent overloading the power adapter and to extend its lifespan.

• Type of LED Strip	Common Voltage	Application Area
  Single color / RGB	12V DC	Shorter lengths, general indoor use
  Single color / RGB / CCT	24V DC	Longer lengths, less voltage drop, commercial applications
  Addressable strips (e.g. WS2812B)	5V DC (often USB)	Short decorative uses, smart projects
  High Voltage (230V)	230V AC	Very long lengths, no external adapter needed, outdoor use

• Current (Amperage): The current of the power adapter should be equal to or greater than the total current drawn by your LED strip(s). This can be calculated using the formula: current (A) = total wattage (W) / voltage (V).
• IP Rating: For outdoor or damp environments (e.g. bathrooms), a power adapter with a high IP rating (e.g. IP67) is required to protect against water and dust.

Easy Connections: LED Strip Connector Accessories

Connecting or extending LED strips correctly can be done easily without soldering by using specific connector materials. These connectors allow for quick and secure linking of strips, which is especially handy for installers working on multiple projects. The various connectors are tailored to the width of the LED strip and the number of pins (e.g. 2-pin for single color, 4-pin for RGB).

When making connections, it's important to carefully follow the cutting lines on the LED strip, usually marked with a scissor icon or copper pad. Incorrect cutting can impair the strip’s functionality. For outdoor applications, it is recommended to use waterproof connectors to protect your installation from external factors and extend its lifespan.

Neat Integration and Protection: LED Profiles and Housings

LED profiles, often made of aluminum, do more than just provide a neat finish. They play an important role in the durability and light distribution of your LED strips. Aluminum acts as a heat sink, dissipating heat produced by the LEDs. This prevents overheating and contributes to a longer lifespan for your LED strips. Additionally, profiles protect the strip from dust, moisture, and physical damage.

There are various types of LED profiles, each suited to a specific installation method or aesthetic:

• Surface-mount profiles: These are mounted directly onto a surface and are a good solution for visible installations, such as under kitchen cabinets or on walls.
• Recessed profiles: These are installed flush into a surface, such as ceilings, walls, or furniture, providing a sleek, seamless look where only the light is visible.
• Corner profiles: Designed for mounting in 90-degree corners, ideal for illuminating display cases or edges.
• Pendant profiles: Suitable for suspending, functioning as fixtures for general or accent lighting.

Key components of an LED profile include:

• Diffusers (covers): These polycarbonate or acrylic covers diffuse the light from individual LEDs, creating a consistent light line and reducing hotspots. They are available in opal (milky) for a soft glow or clear for maximum light output.
• End caps: These seal off the ends of the profile, enhancing the finished look and protecting against dust and moisture.
• Mounting brackets/clips: These provide sturdy and easy attachment of the profile to the surface.

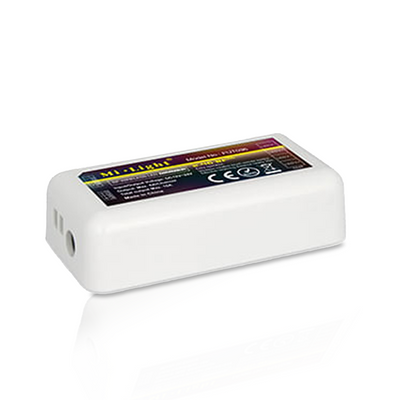

Advanced Control: Take Command of Your LED Lighting

LED strip control has advanced, offering users extensive options and smart functionalities. From simple remote controls to advanced smart home integration, you have a wide range of possibilities to adapt the lighting to your desired ambiance or function.

Types of controllers and their features:

The choice of control system depends on the complexity of your lighting needs and the desired level of automation. For a simple setup, an RF or Bluetooth controller will suffice. For an extensive system with voice control, scheduling, and integration with other smart devices, Wi-Fi controllers or DMX/DALI systems are suitable options.

Creating a Complete Lighting System

Choosing the right accessories for your LED strips makes the difference between basic lighting and a considered lighting system. By paying attention to power supply, connections, finish, and control options, you achieve a durable and functional solution. With the right components, you can transform any space with lighting that meets technical requirements and sets the desired mood. A thoughtful approach to accessories ensures a satisfying result.
