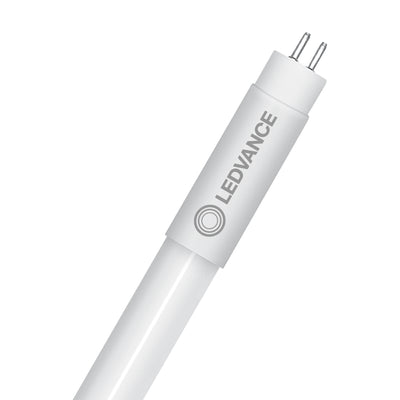

The Switch to 29 Centimeter T5 LED Tubes

Replacing traditional 29cm T5 fluorescent lamps with LED alternatives offers several advantages. These LED tubes are specifically designed as direct replacements for existing fixtures, making the transition straightforward.

• Greater energy savings: LED T5 tubes consume significantly less power than their predecessors. This results in a noticeable reduction in energy costs, which is attractive for both commercial and private users.
• Longer lifespan: With a much longer operating life than traditional fluorescent lamps, LED solutions minimize the frequency of replacements and associated maintenance costs.
• Environmentally friendlier: LED lamps contain no mercury, making them a responsible choice for the environment and for end-of-life processing.
• Instant, flicker-free light: LED T5 tubes provide full brightness immediately without warm-up time or bothersome flicker, contributing to a more comfortable lighting experience.

What You Need to Know About 29cm T5 Fluorescent and LED Alternatives

When choosing a 29 centimeter T5 lamp, it is important to select the appropriate replacement option. Traditional T5 lamps of this length typically have a wattage of 6 Watt or 8 Watt. LED alternatives deliver the same light output at a much lower wattage.

Overview of Traditional T5 29cm Wattages and LED Replacements

The table below provides a clear overview of the common traditional wattages and their corresponding energy-efficient LED alternatives for this specific length.

Installing T5 LED Tubes

Replacing a traditional T5 fluorescent lamp with an LED version may depend on the type of ballast in your existing fixture. Most 29cm T5 LED tubes are designed for a direct 'retrofit' installation in fixtures with an electronic ballast (HF ballast). This means the existing ballast remains in place and you simply remove the old fluorescent tube and insert the LED tube. No further wiring modifications are needed.

For fixtures with a conventional (magnetic) ballast (EM ballast), which often works together with a starter, installation is similar to that of T8 LED tubes. You will need to remove the old fluorescent tube and starter, and then replace them with the LED tube and a special LED starter. Always check the product specifications of the LED tube for the correct installation method.

Application Areas and Light Quality of Compact T5 Lighting

The 29 centimeter T5 fluorescent lamps, and especially their LED alternatives, are suitable for various applications where a slim light source and uniform light distribution are desired.

• Under-cabinet lighting in kitchens: Provides bright task lighting on countertops without making the fixture prominent.
• Showcases and display cabinets: Accentuates products and ensures an attractive presentation.
• Mirror lighting in bathrooms: Offers functional light for personal care. Always pay attention to the IP rating of the fixture for damp environments.
• Atmospheric lighting in niches or shelving: Creates subtle accents in residential or commercial spaces.

The light quality of modern T5 LED tubes has significantly improved. You can choose from different color temperatures (Kelvin) to create the right ambiance:

• Warm white (around 3000K): Creates a welcoming and cozy atmosphere, similar to traditional incandescent lamps.
• Cool white (around 4000K): Delivers more functional, brighter light, suitable for workspaces such as offices or kitchens where good visibility is required.
• Daylight white (around 6500K): Mimics natural daylight and is ideal for locations where detail work takes place, such as workshops or laboratories.

The color rendering index (CRI) of LED T5 tubes is typically also high (>80), which means colors are rendered naturally—a key factor for retail and presentation purposes.

User Questions About 29cm T5 Fluorescent Lighting

We regularly receive questions about replacing and operating T5 fluorescent lamps, especially the shorter 29 centimeter variants. Here we answer some common questions relevant to installers and users.

Why are my 29cm T5 fluorescent lamps no longer available at hardware stores?

The availability of traditional fluorescent lamps, including the T5 variants, is limited due to European regulations aimed at phasing out mercury-containing light sources. This means manufacturers have stopped production and sales of remaining stock is gradually decreasing. This is why you often no longer find these lamps in regular hardware stores, which are now fully focused on energy-efficient LED alternatives.

Can I install a dimmable 29cm T5 LED tube?

Some LED T5 tubes are dimmable, but this requires a compatible dimmable ballast. Always check the specifications of both the LED tube and the existing fixture. If dimming is required, make sure to purchase a dimmable LED T5 tube suitable for your specific dimming setup.

Are there also T5 LED fixtures available for this length?

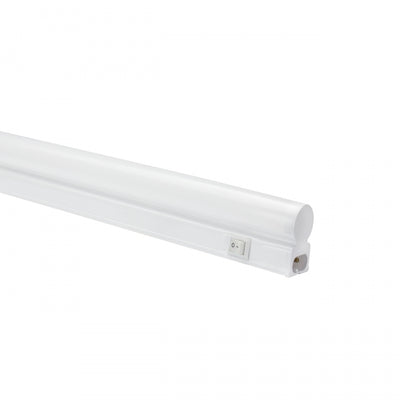

In addition to separate T5 LED tubes, there are also complete LED fixtures available designed for 29 centimeter T5 lamps. These fixtures are often slim and can easily be mounted under cabinets or in narrow spaces. The advantage of a complete LED fixture is that the electronics are already optimized for the LED light source, which simplifies installation and guarantees compatibility.

Taking Responsibility for a Sustainable Future

The switch to LED lighting for 29 centimeter T5 fluorescent lamps contributes to a more sustainable society. By choosing LED, you reduce your energy consumption and ecological footprint. When replacing your old fluorescent lamps, don't forget to turn them in at a recognized electronic waste recycling point, because of the mercury they contain. This helps prevent environmental pollution and allows valuable materials to be reused.

Opting for 29 centimeter T5 LED lighting is a practical step towards modern, efficient, and environmentally responsible lighting for compact applications.
