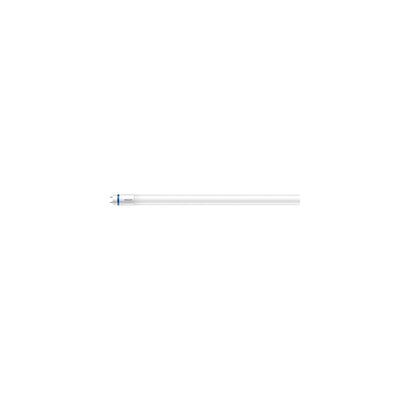

Philips LED G13 CorePro LEDtube 600mm
-
8W
-
750lm
-
3000K
4,50
TL T8 60 cm
The T8 fluorescent tube with a length of 60 cm is a common light source in a variety of professional environments. From workshops to warehouses and from offices to schools, the 60 cm T8 tube has provided reliable and functional lighting for years. These tubes are characterized by their G13 socket, with a pin distance of 13mm and a tube diameter of 26mm.
3 products
Easily Replace Your Traditional 60cm T8 Fluorescent Tubes
Replacing a conventional 60 cm T8 fluorescent tube with an LED version is often a simple procedure. This transition offers immediate benefits in terms of energy consumption and lifespan. A traditional 60 cm T8 fluorescent lamp typically uses 18 Watts. LED equivalents usually range from 8 to 10 Watts, resulting in an immediate energy saving of approximately 50% or more.
Below is an overview of the most common specifications:
| Specification | Traditional T8 (60cm) | LED T8 (60cm) Replacement |
|---|---|---|
| Length | 60 cm | 60 cm |
| Wattage | 18W | 8W - 10W (depending on model) |
| Socket | G13 | G13 |
| Lifespan | approx. 15,000 - 20,000 hours | approx. 30,000 - 60,000 hours |
| Energy Saving vs Traditional | N/A | around 50% or more |
| Mercury-Free | No | Yes |
Installation of 60cm LED T8 Tubes: What to Consider
When installing a 60 cm LED T8 tube in an existing fixture, there are two primary methods, depending on the type of LED tube and the existing ballast. It's crucial to choose the correct method to prevent damage to the lamp and fixture and to ensure safety.
Option 1: Installation Using Existing Ballast (Plug & Play)
Many 60 cm LED T8 tubes are designed as 'plug & play' (often referred to as Type A). This means they can be placed directly into a fixture with a working electronic ballast (EVSA) or a conventional ballast (CVSA) and starter. Installation is generally straightforward:
- Fully switch off the power supply to the fixture before starting the work.
- Remove the old 60 cm fluorescent tube from the fixture.
- If the fixture has a starter (CVSA), replace it with the supplied LED starter.
- Install the new 60 cm LED T8 tube into the fixture.
- Switch the power supply back on.
This method is quick and does not require any wiring modification. Pay close attention to the LED tube’s compatibility with the type of ballast in your fixture.
Option 2: Direct Connection to Mains Power (Ballast Bypass)
An alternative method is the 'ballast bypass' (often referred to as Type B). In this installation, the existing ballast is completely removed from the fixture and the LED tube is connected directly to the 230V mains supply. This eliminates the ballast’s energy use and potential failure point, resulting in even greater efficiency and lifespan for the LED tube.
This installation method requires basic knowledge of electrical wiring and may take more time. It is recommended to have this installation performed by a qualified electrician to ensure safety and correct operation.
With ballast bypass LED tubes, there are often 'single-ended' (power supply on one side) and 'dual-ended' (power supply on both sides) variants. Check the specifications of the LED tube for the proper wiring method.
Important Specifications for 60cm T8 LED Tubes
In addition to the installation method, there are various technical specifications that are important when choosing the right 60 cm LED T8 tube for your project:
- Luminous Output (Lumen): The lumen value indicates how much light the lamp actually produces. For an 18W traditional fluorescent tube, the lumen output is typically between 1200 and 1300 lumens. Ensure that the LED replacement has a similar or higher lumen value for equally bright or brighter lighting.
-
Light Color (Kelvin): The color temperature, expressed in Kelvin (K), determines the ambiance of the light. Common options for 60cm T8 LED tubes are:
- 3000K (Warm White): For a pleasant and comfortable atmosphere, suitable for reception areas, canteens, or living rooms.
- 4000K (Cool White): A neutral, functional light color often used in offices, workplaces, and warehouses for increased productivity and focus.
- 6500K (Daylight White): A very bright, cool light color that is close to natural daylight. This is suitable for areas where detail and visibility are important, such as in laboratories or production facilities.
- Color Rendering Index (CRI): The CRI indicates how accurately colors are rendered under the lamp's light. A CRI of 80 or higher is generally sufficient for most applications and ensures good color rendering.
- Dimmability: Not all LED T8 tubes are dimmable. If dimming capability is desired, specifically check if the LED tube supports this feature and is compatible with any existing dimmers.
- Beam Angle: Most LED T8 tubes have a beam angle of approximately 160–190 degrees. This ensures efficient light distribution.
Frequently Asked Questions about 60cm T8 Fluorescent Tubes
Can I simply place a LED T8 60cm tube in my old fixture?
This depends on the type of fixture and the LED tube. If it’s a 'plug & play' LED tube and your fixture has a compatible electronic ballast, this is often possible. For fixtures with a starter, you must also replace the starter with an LED starter. For optimal efficiency and to eliminate the ballast as a potential source of malfunction, direct connection (ballast bypass) is an alternative, but it requires wiring modifications.
How do I know if my fixture has an electronic or conventional ballast?
Fixtures with a conventional ballast always have a separate starter that you can replace. Fixtures with an electronic ballast do not have a starter and the light switches on immediately without flickering.
What is the lifespan of a 60cm LED T8 tube?
The lifespan of a 60cm LED T8 tube varies, but is generally much longer than that of traditional fluorescent tubes. Many LED versions have an expected lifetime of 30,000 to 60,000 hours. This is on average 2 to 3 times longer than conventional versions.
How do I save energy with 60cm LED T8 lighting?
LED T8 tubes consume significantly less energy than their traditional counterparts for the same light output. By replacing an 18W fluorescent tube with an 8–10W LED version, you achieve a direct energy saving of at least 50%. The longer lifespan also reduces replacement and maintenance costs.
The 60 cm T8 LED tube is an efficient and sustainable solution for replacing outdated fluorescent lighting. By paying attention to the right specifications and installation method, you ensure a reliable and energy-efficient lighting solution for your work or commercial space.
