    Where 30x30cm LED Panels Are Used

    Due to their compact size, 30x30cm LED panels are especially suitable for places where larger panels do not fit or are less desirable. They are often used in:

    • Compact offices and study rooms: For bright lighting that enhances concentration.
    • Hallways and entrances: To provide ample light in narrower passageways.
    • Waiting rooms and smaller reception areas: Where a welcoming and well-lit environment is desired.
    • Kitchens and utility rooms: As functional general lighting.
    • Technical rooms and storage spaces: For a practical and low-maintenance light source.

    Advantages of Choosing 30x30cm LED Panels

    Switching to 30x30cm LED panels offers several practical benefits compared to traditional lighting.

    • Energy efficiency: These panels consume significantly less energy than comparable fluorescent lighting, resulting in lower energy costs. For example, a 13W LED panel can replace two 8W fluorescent tubes.
    • Long lifespan: With an expected lifespan of 30,000 to 50,000 hours on average, LED panels last many years. This reduces the need for frequent replacement and lowers maintenance costs.
    • Uniform light distribution: The panels ensure wide and even light dispersion, minimizing shadows and promoting a pleasant working environment.
    • Instant start and no flicker: LED panels light up immediately at full brightness with no warm-up time or annoying flickering.
    • Environmentally friendly: LED lighting contains no mercury and is fully recyclable, contributing to a smaller ecological footprint.

    Key Technical Aspects of 30x30cm LED Panels

    When selecting a 30x30cm LED panel, several technical features are important to make the right choice for your specific situation.

    Overview of important specifications
    Specification Explanation and relevance
    Luminous efficiency (Lumen) Indicates the total amount of emitted light. For a 30x30cm panel, this typically ranges from 1500 to 1800 lumens. Choose a higher lumen value for areas where more light is needed.
    Light color (Kelvin) Expressed in Kelvin (K), it determines the atmosphere of the light. Popular options are:
    • 3000K: Warm white, for a cozy ambiance.
    • 4000K: Cool white, for general spaces and offices.
    • 6500K: Daylight white, for optimal concentration and clarity.
    • Tunable white (CCT/Tunable White): Allows the light color to be adjusted, ranging from warm white to daylight white.
    Color Rendering Index (CRI) Indicates how accurately colors are rendered. A CRI of 80-89 (good color rendering) is sufficient for most uses, while a CRI of 90-99 (excellent color rendering) is preferred in areas where color accuracy is important.
    UGR Value (Glare Rating) The Unified Glare Rating (UGR) indicates the degree of glare. For offices and schools, a UGR <19 is required to ensure visual comfort. For general spaces, a UGR <22 is usually sufficient.
    IP Rating (Protection Degree) The Ingress Protection (IP) rating indicates protection against dust and moisture. For 30x30cm LED panels indoors, IP20 (protected against solid objects >12.5mm) is standard, which is nearly dust-tight.
    Dimming capability Not all LED panels are dimmable. Check if the panel is dimmable and which dimming method is supported (e.g., phase-cut, DALI, or via a smart home system such as Wi-Fi or Zigbee).
    Wattage and Lumen/Watt ratio Wattage indicates energy consumption. The Lumen/Watt ratio shows the panel’s efficiency: the higher this number, the more light produced per watt consumed. This is a good indicator of energy efficiency.
    Power factor A high power factor (usually >0.90) indicates efficient power usage, which is important for a stable power supply and less energy loss.

    Mounting and Installation of 30x30cm LED Panels

    30x30cm LED panels can be installed in various ways depending on the ceiling type and the desired appearance.

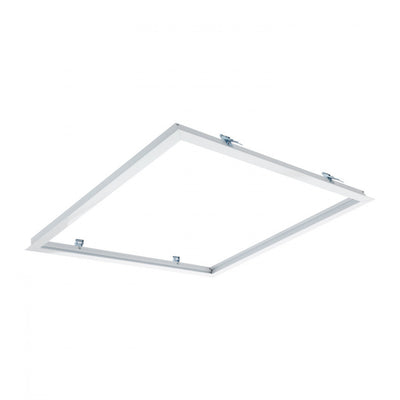

    • Recessed mounting: The most common method, where the panel is fitted into a suspended ceiling grid. This provides a sleek, flush finish. Ensure the panel dimensions match the ceiling tiles.
    • Surface mounting: When recessed installation is not possible, the panel can be attached to the ceiling with a surface mounting frame. This creates a neat assembly that protrudes slightly below the ceiling.
    • Suspended mounting: With a special hanging kit, the panel can be suspended from the ceiling by cables. This offers a modern, floating look and is suitable for higher ceilings.

    Choosing Lighting for Your Environment

    Selecting the right 30x30cm LED panel contributes to the functionality and comfort of your space. By paying attention to the light color, lumen value, and specific features such as dimmability and UGR value, you can create a lighting solution tailored to the needs of the users and the nature of the activities in the space.
