Different Mounting Methods for LED Panels

LED panels can be installed in various ways. The choice of installation material depends on the type of ceiling and the desired mounting: surface-mounted, recessed, or suspended. Below you will find an overview of the most common methods and the corresponding materials.

Using a Surface-Mount Frame for LED Panels

A surface-mount frame offers a solution when recessed installation in the ceiling is not possible, for example, with a concrete ceiling. The surface-mount frame creates a housing in which the LED panel is placed, allowing the panel to sit flush against the ceiling. This results in a neat and sleek finish.

Steps for mounting with a surface-mount frame:

• Attach the sides of the surface-mount frame to the ceiling.
• Slide the LED panel into the frame, often via the open side installed last.
• Connect the LED driver.
• Attach the final side of the frame.

Suspending LED Panels with a Suspension System

A suspension system, also known as a hanging set or pendant kit, is used to hang LED panels from the ceiling. This creates a floating effect and is an excellent choice for rooms with high ceilings or when a modern, open look is desired. The cables are adjustable in length to achieve the desired height.

Recessing LED Panels in a Drop Ceiling

The most common and often simplest installation method for LED panels is recessed mounting in a drop ceiling (also known as a suspended ceiling with T-profiles). LED panels are generally directly interchangeable with the existing ceiling tiles of the same dimensions. Usually, no additional installation materials are needed, as the panel fits directly into the opening of the ceiling grid.

Key points for recessed mounting in a drop ceiling:

• Check the dimensions of the LED panel and the opening in the ceiling grid. Standard sizes are 60x60 cm, 30x120 cm, and 60x120 cm.
• The LED driver is placed above the panel, on the drop ceiling.

Recessed Frame for LED Panels in Plasterboard Ceilings

When an LED panel needs to be recessed in a plasterboard or other closed ceiling, a special recessed frame is required. This frame is installed in a cut-out in the ceiling and provides a clean, even edge finish.

Mounting with a recessed frame for plasterboard:

1. Make a cut-out in the ceiling according to the recessed frame's dimensions.
2. Place the recessed frame in the cut-out and secure it firmly.
3. Slide the LED panel into the recessed frame.
4. Connect the LED driver.

Points to Consider When Choosing Installation Materials

Choosing the right installation materials for your LED panels contributes to a long lifespan and safe installation. Pay attention to the following points:

• Compatibility: Always check if the installation material is compatible with your specific LED panel's dimensions. Not all systems are universal.
• Quality and durability: Choose materials that are sturdy and durable, so they can bear the panel's weight and withstand potential environmental factors (for example, moisture in a bathroom, for which the panel's IP rating is also important).
• Electrical safety: Make sure the power is turned off before you begin installation. If you are unsure about the electrical connection, it is advised to consult a qualified electrician.

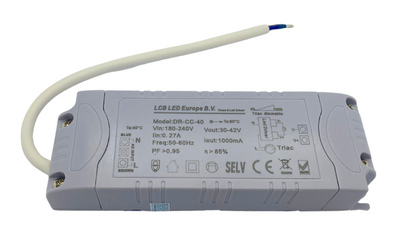

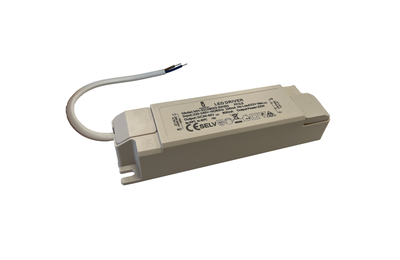

• LED Driver: The LED driver, which converts mains voltage to the correct voltage for the LED panel, is a crucial component. It is usually supplied with the LED panel, but its placement (above the ceiling or within the surface-mount frame) depends on the chosen installation method.

Which Installation Material is Suitable for Your LED Panel?

The choice of installation materials for your LED panels depends on the situation and your preferences. It is important to determine in advance which method is suitable for your ceiling and the desired appearance. For a flat, seamless result in a drop ceiling, direct recessed mounting is sufficient. For other ceiling types, surface-mount frames and suspension systems provide suitable solutions, each with their own advantages for mounting and aesthetics. If you have technical questions, always consult the product specifications or an expert.
